Ceramic B170 Media Blasting Media Automotive Industry Blast Reinforcement

Zhengzhou Zhengtong Abrasive Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Ceramic B170 Media Blasting Media Automotive Industry Blast Reinforcement

Brand Name : Zhengtong

Model Number : B170

Certification : ISO9001, ISO14001

Place of Origin : Shanxi, China

MOQ : 100KGS

Price : Negotiation

Supply Ability : 1500mt per year

Delivery Time : 5-10 days

Packaging Details : 12.5kgs/barrel, 25kgs (2 barrels)/paper carton, or 25kgs barrels +pallet

Commodity Name : Ceramic beads blasting media

Chemical Index : ZrO2 60-66%, SiO2 25-30%, Al2O3 7-13%

Manufacturing process : Melting method

Bulk Density : 2.3g.cm3

True Density : 3.85g/cm3

Hardness : 700HV

Package : 25kgs paper cartons or 25kgs barrels +pallet

Contact Now

Ceramic blasting media B170 Automotive industry blast reinforcement refurbishment

Description of Ceramic blasting media

Ceramic Beads are spherical sandblasting media made by the electric fusion of zirconia oxides sand at very high temperature. Ceramic Beads are with good toughness and fracture resistant, ensuring surface treatment consistent intensities and satin finishes.

Specification of Ceramic blasting media

Manufacturing process: Melting method

ZrO2 SiO2 Al2O3 Other
60-66%, 25-30% max. 7-13% max. 5-8%

Color Bulk Density True Specific Density Vickers Hardness
White 2.3g/cm3 3.85g/cm3 700 HV

Sizes

B20 B30 B40 B60
600-850µm 425-6000µm 0250-425µm 125-250µm
B80 B120 B170 B205
180-250µm 63-125µm 45-90µm 0-63µm

Special sizes available against clients’ requirement.

Features of Ceramic blasting media

Strong chemical resistance

Guarantees constant performance eg. consistent Surface blasting effect.

Low dust emission

Does not contaminate the work piece surface, and no hidden danger of silicosis, it is harmless to the human body.

Not easy to break

Recyclable,and can reduce the refueling times, improve working efficiency.

Application of Ceramic blasting media

Automotive industry-sandblasting reinforcement and refurbishment

Suitable for gearbox gears, automotive aluminum alloy wheels, automotive cylinder liners/piston parts/shock absorbers, engine crankshaft blasting/shot peening, and automobiles, motorcycles, and electromechanical equipments moving parts refurbishment.

The refurbishment and cleaning of all moving parts can be achieved by using ceramic beads blasting, and restore the metal luster of the work piece. At the same time, it can eliminate the fatigue stress of the parts and prolong their service life.

Other application like Sandblasting finishing, Surface cleaning, Surface Pretreatment etc..

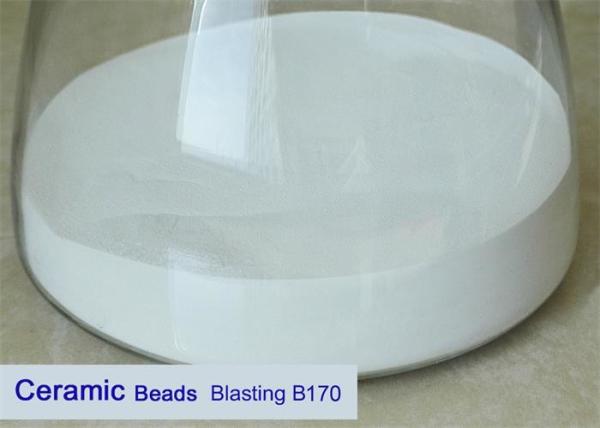

Ceramic B170 Media Blasting Media Automotive Industry Blast Reinforcement

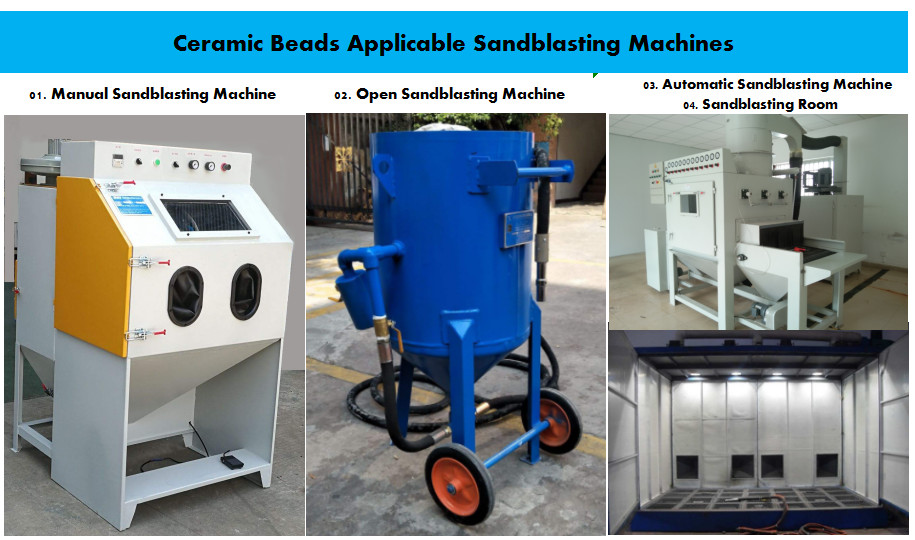

Suitable sand blasting machine:

Manual type series:

Manual closed type blasting machine, manual cart rotary blasting machine, double gun double station manual blasting machine, manual (automatic) roller dual-purpose blasting machine, manual closed pressure

Automatic series of sand blasting machine:

Automatic closed pressure blasting machine, automatic conveying type blasting machine, crawler type blasting machine, automatic turntable blasting machine, automatic turntable continuous pressure blasting machine, automatic conveying

Open type series of sand blasting machine:

Crankshaft inner wall automatic sand blasting machine

Blasting room series:

Pneumatic conveying type blasting room, mechanical conveying type blasting room, etc.
